整合SSM笔记-狂神

整合SSM框架

环境要求

环境：

• IDEA
• MySQL 5.7.19
• Tomcat 9
• Maven 3.6

要求：

• 需要熟练掌握MySQL数据库，Spring，JavaWeb及MyBatis知识，简单的前端知识；

数据库环境

创建一个存放书籍数据的数据库表

CREATE DATABASE `ssmbuild`;

USE `ssmbuild`;

DROP TABLE IF EXISTS `books`;

CREATE TABLE `books` (
`bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
`bookName` VARCHAR(100) NOT NULL COMMENT '书名',
`bookCounts` INT(11) NOT NULL COMMENT '数量',
`detail` VARCHAR(200) NOT NULL COMMENT '描述',
KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8;

INSERT  INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');

基本环境搭建

1. 新建一Maven项目！ssmbuild ， 添加web的支持

2. 导入相关的pom依赖！

   <dependencies>
      <!--Junit-->
      <dependency>
          <groupId>junit</groupId>
          <artifactId>junit</artifactId>
          <version>4.12</version>
      </dependency>
      <!--数据库驱动-->
      <dependency>
          <groupId>mysql</groupId>
          <artifactId>mysql-connector-java</artifactId>
          <version>5.1.47</version>
      </dependency>
      <!-- 数据库连接池 -->
      <dependency>
          <groupId>com.mchange</groupId>
          <artifactId>c3p0</artifactId>
          <version>0.9.5.2</version>
      </dependency>

      <!--Servlet - JSP -->
      <dependency>
          <groupId>javax.servlet</groupId>
          <artifactId>servlet-api</artifactId>
          <version>2.5</version>
      </dependency>
      <dependency>
          <groupId>javax.servlet.jsp</groupId>
          <artifactId>jsp-api</artifactId>
          <version>2.2</version>
      </dependency>
      <dependency>
          <groupId>javax.servlet</groupId>
          <artifactId>jstl</artifactId>
          <version>1.2</version>
      </dependency>

      <!--Mybatis-->
      <dependency>
          <groupId>org.mybatis</groupId>
          <artifactId>mybatis</artifactId>
          <version>3.5.2</version>
      </dependency>
      <dependency>
          <groupId>org.mybatis</groupId>
          <artifactId>mybatis-spring</artifactId>
          <version>2.0.2</version>
      </dependency>

      <!--Spring-->
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-webmvc</artifactId>
          <version>5.1.9.RELEASE</version>
      </dependency>
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-jdbc</artifactId>
          <version>5.1.9.RELEASE</version>
      </dependency>
   </dependencies>

3. Maven资源过滤设置

   <build>
      <resources>
          <resource>
              <directory>src/main/java</directory>
              <includes>
                  <include>**/*.properties</include>
                  <include>**/*.xml</include>
              </includes>
              <filtering>false</filtering>
          </resource>
          <resource>
              <directory>src/main/resources</directory>
              <includes>
                  <include>**/*.properties</include>
                  <include>**/*.xml</include>
              </includes>
              <filtering>false</filtering>
          </resource>
      </resources>
   </build>

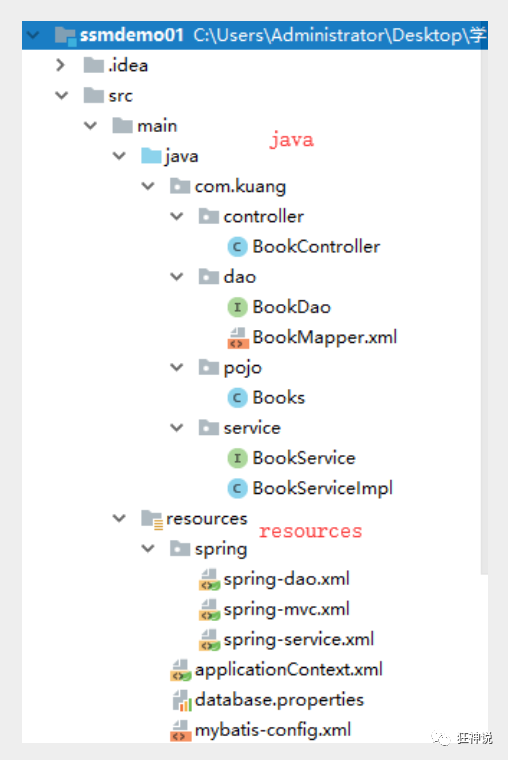

4. 建立基本结构和配置框架！

   • nuc.ss.pojo

   • nuc.ss.dao

   • nuc.ss.service

   • nuc.ss.controller

   • mybatis-config.xml

     <?xml version="1.0" encoding="UTF-8" ?>
     <!DOCTYPE configuration
            PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
            "http://mybatis.org/dtd/mybatis-3-config.dtd">
     <configuration>

     </configuration>

   • applicationContext.xml

     <?xml version="1.0" encoding="UTF-8"?>
     <beans xmlns="http://www.springframework.org/schema/beans"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans.xsd">

     </beans>

Mybatis层编写

1. 数据库配置文件 database.properties

   jdbc.driver=com.mysql.jdbc.Driver
   jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=true&useUnicode=true&characterEncoding=utf8
   jdbc.username=root
   jdbc.password=admin

   2. IDEA关联数据库

   3. 编写MyBatis的核心配置文件


   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE configuration
          PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
          "http://mybatis.org/dtd/mybatis-3-config.dtd">
   <configuration>

      <typeAliases>
          <package name="nuc.ss.pojo"/>
      </typeAliases>
      <mappers>
          <mapper resource="nuc/ss/dao/BookMapper.xml"/>
      </mappers>

   </configuration>

   4. 编写数据库对应的实体类 nuc.ss.pojo.Books（使用lombok插件！）


   package nuc.ss.pojo;

   import lombok.AllArgsConstructor;
   import lombok.Data;
   import lombok.NoArgsConstructor;

   @Data
   @AllArgsConstructor
   @NoArgsConstructor
   public class Books {

      private int bookID;
      private String bookName;
      private int bookCounts;
      private String detail;

   }

   5. 编写Dao层的 Mapper接口！


   package nuc.ss.dao;

   import nuc.ss.pojo.Books;
   import java.util.List;

   public interface BookMapper {

      //增加一个Book
      int addBook(Books book);

      //根据id删除一个Book
      int deleteBookById(int id);

      //更新Book
      int updateBook(Books books);

      //根据id查询,返回一个Book
      Books queryBookById(int id);

      //查询全部Book,返回list集合
      List<Books> queryAllBook();

   }

   6. 编写接口对应的 Mapper.xml 文件。需要导入MyBatis的包；


   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE mapper
          PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
          "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

   <mapper namespace="nuc.ss.dao.BookMapper">

      <!--增加一个Book-->
      <insert id="addBook" parameterType="Books">
         insert into ssmbuild.books(bookName,bookCounts,detail)
         values (#{bookName}, #{bookCounts}, #{detail})
      </insert>

      <!--根据id删除一个Book-->
      <delete id="deleteBookById" parameterType="int">
         delete from ssmbuild.books where bookID=#{bookID}
      </delete>

      <!--更新Book-->
      <update id="updateBook" parameterType="Books">
         update ssmbuild.books
         set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
         where bookID = #{bookID}
      </update>

      <!--根据id查询,返回一个Book-->
      <select id="queryBookById" resultType="Books">
         select * from ssmbuild.books
         where bookID = #{bookID}
      </select>

      <!--查询全部Book-->
      <select id="queryAllBook" resultType="Books">
         SELECT * from ssmbuild.books
      </select>

   </mapper>

   7. 编写Service层的接口和实现类


   接口：

   package nuc.ss.service;

   import nuc.ss.pojo.Books;

   import java.util.List;

   //BookService:底下需要去实现,调用dao层
   public interface BookService {
      //增加一个Book
      int addBook(Books book);
      //根据id删除一个Book
      int deleteBookById(int id);
      //更新Book
      int updateBook(Books books);
      //根据id查询,返回一个Book
      Books queryBookById(int id);
      //查询全部Book,返回list集合
      List<Books> queryAllBook();
   }

   实现类：

   package nuc.ss.service;

   import nuc.ss.dao.BookMapper;
   import nuc.ss.pojo.Books;
   import java.util.List;

   public class BookServiceImpl implements BookService {

      //调用dao层的操作，设置一个set接口，方便Spring管理
      private BookMapper bookMapper;

      public void setBookMapper(BookMapper bookMapper) {
          this.bookMapper = bookMapper;
     }

      public int addBook(Books book) {
          return bookMapper.addBook(book);
     }

      public int deleteBookById(int id) {
          return bookMapper.deleteBookById(id);
     }

      public int updateBook(Books books) {
          return bookMapper.updateBook(books);
     }

      public Books queryBookById(int id) {
          return bookMapper.queryBookById(id);
     }

      public List<Books> queryAllBook() {
          return bookMapper.queryAllBook();
     }
   }

OK，到此，底层需求操作编写完毕！

Spring层

1. 配置Spring整合MyBatis，我们这里数据源使用c3p0连接池；

2. 我们去编写Spring整合Mybatis的相关的配置文件；spring-dao.xml

   <?xml version="1.0" encoding="UTF-8"?>
   <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns:context="http://www.springframework.org/schema/context"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
          http://www.springframework.org/schema/beans/spring-beans.xsd
          http://www.springframework.org/schema/context
          https://www.springframework.org/schema/context/spring-context.xsd">

      <!-- 配置整合mybatis -->
      <!-- 1.关联数据库文件 -->
      <context:property-placeholder location="classpath:database.properties"/>

      <!-- 2.数据库连接池 -->
      <!--数据库连接池
          dbcp 半自动化操作 不能自动连接
          c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面）
      -->
      <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
          <!-- 配置连接池属性 -->
          <property name="driverClass" value="${jdbc.driver}"/>
          <property name="jdbcUrl" value="${jdbc.url}"/>
          <property name="user" value="${jdbc.username}"/>
          <property name="password" value="${jdbc.password}"/>

          <!-- c3p0连接池的私有属性 -->
          <property name="maxPoolSize" value="30"/>
          <property name="minPoolSize" value="10"/>
          <!-- 关闭连接后不自动commit -->
          <property name="autoCommitOnClose" value="false"/>
          <!-- 获取连接超时时间 -->
          <property name="checkoutTimeout" value="10000"/>
          <!-- 当获取连接失败重试次数 -->
          <property name="acquireRetryAttempts" value="2"/>
      </bean>

      <!-- 3.配置SqlSessionFactory对象 -->
      <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
          <!-- 注入数据库连接池 -->
          <property name="dataSource" ref="dataSource"/>
          <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
          <property name="configLocation" value="classpath:mybatis-config.xml"/>
      </bean>

      <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
      <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html-->
      <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
          <!-- 注入sqlSessionFactory -->
          <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
          <!-- 给出需要扫描Dao接口包 -->
          <property name="basePackage" value="nuc.ss.dao"/>
      </bean>

   </beans>

3. Spring整合service层

   <?xml version="1.0" encoding="UTF-8"?>
   <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns:context="http://www.springframework.org/schema/context"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context.xsd">

      <!-- 扫描service相关的bean -->
      <context:component-scan base-package="nuc.ss.service" />

      <!--BookServiceImpl注入到IOC容器中-->
      <bean id="BookServiceImpl" class="nuc.ss.service.BookServiceImpl">
          <property name="bookMapper" ref="bookMapper"/>
      </bean>

      <!-- 配置事务管理器 -->
      <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
          <!-- 注入数据库连接池 -->
          <property name="dataSource" ref="dataSource" />
      </bean>

   </beans>

SpringMVC层

1. web.xml

   <?xml version="1.0" encoding="UTF-8"?>
   <web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
           version="4.0">

      <!--DispatcherServlet-->
      <servlet>
          <servlet-name>DispatcherServlet</servlet-name>
          <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
          <init-param>
              <param-name>contextConfigLocation</param-name>
              <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
              <param-value>classpath:applicationContext.xml</param-value>
          </init-param>
          <load-on-startup>1</load-on-startup>
      </servlet>
      <servlet-mapping>
          <servlet-name>DispatcherServlet</servlet-name>
          <url-pattern>/</url-pattern>
      </servlet-mapping>

      <!--encodingFilter-->
      <filter>
          <filter-name>encodingFilter</filter-name>
          <filter-class>
             org.springframework.web.filter.CharacterEncodingFilter
          </filter-class>
          <init-param>
              <param-name>encoding</param-name>
              <param-value>utf-8</param-value>
          </init-param>
      </filter>
      <filter-mapping>
          <filter-name>encodingFilter</filter-name>
          <url-pattern>/*</url-pattern>
      </filter-mapping>

      <!--Session过期时间-->
      <session-config>
          <session-timeout>15</session-timeout>
      </session-config>

   </web-app>

2. spring-mvc.xml

   <?xml version="1.0" encoding="UTF-8"?>
   <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns:context="http://www.springframework.org/schema/context"
         xmlns:mvc="http://www.springframework.org/schema/mvc"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context.xsd
      http://www.springframework.org/schema/mvc
      https://www.springframework.org/schema/mvc/spring-mvc.xsd">

      <!-- 配置SpringMVC -->
      <!-- 1.开启SpringMVC注解驱动 -->
      <mvc:annotation-driven />
      <!-- 2.静态资源默认servlet配置-->
      <mvc:default-servlet-handler/>

      <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
      <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
          <property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
          <property name="prefix" value="/WEB-INF/jsp/" />
          <property name="suffix" value=".jsp" />
      </bean>

      <!-- 4.扫描web相关的bean -->
      <context:component-scan base-package="nuc.ss.controller" />

   </beans>

3. Spring配置整合文件，applicationContext.xml

   <?xml version="1.0" encoding="UTF-8"?>
   <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
          http://www.springframework.org/schema/beans/spring-beans.xsd">

      <import resource="spring-dao.xml"/>
      <import resource="spring-service.xml"/>
      <import resource="spring-mvc.xml"/>

   </beans>

   配置文件，暂时结束！

Controller 和 视图层编写

1. BookController 类编写 ， 方法一：查询全部书籍

   @Controller
   @RequestMapping("/book")
   public class BookController {

      @Autowired
      @Qualifier("BookServiceImpl")
      private BookService bookService;

      @RequestMapping("/allBook")
      public String list(Model model) {
          List<Books> list = bookService.queryAllBook();
          model.addAttribute("list", list);
          return "allBook";
     }
   }

2. 编写首页 index.jsp

   <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>
   <!DOCTYPE HTML>
   <html>
   <head>
      <title>首页</title>
      <style type="text/css">
          a {
              text-decoration: none;
              color: black;
              font-size: 18px;
         }
          h3 {
              width: 180px;
              height: 38px;
              margin: 100px auto;
              text-align: center;
              line-height: 38px;
              background: deepskyblue;
              border-radius: 4px;
         }
      </style>
   </head>
   <body>

   <h3>
      <a href="${pageContext.request.contextPath}/book/allBook">点击进入列表页</a>
   </h3>
   </body>
   </html>

3. 书籍列表页面 allbook.jsp

   <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
   <%@ page contentType="text/html;charset=UTF-8" language="java" %>
   <html>
   <head>
      <title>书籍列表</title>
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <!-- 引入 Bootstrap -->
      <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
   </head>
   <body>

   <div class="container">

      <div class="row clearfix">
          <div class="col-md-12 column">
              <div class="page-header">
                  <h1>
                      <small>书籍列表 —— 显示所有书籍</small>
                  </h1>
              </div>
          </div>
      </div>

      <div class="row">
          <div class="col-md-4 column">
              <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
          </div>
      </div>

      <div class="row clearfix">
          <div class="col-md-12 column">
              <table class="table table-hover table-striped">
                  <thead>
                  <tr>
                      <th>书籍编号</th>
                      <th>书籍名字</th>
                      <th>书籍数量</th>
                      <th>书籍详情</th>
                      <th>操作</th>
                  </tr>
                  </thead>

                  <tbody>
                  <c:forEach var="book" items="${requestScope.get('list')}">
                      <tr>
                          <td>${book.getBookID()}</td>
                          <td>${book.getBookName()}</td>
                          <td>${book.getBookCounts()}</td>
                          <td>${book.getDetail()}</td>
                          <td>
                              <a href="${pageContext.request.contextPath}/book/toUpdateBook?id=${book.getBookID()}">更改</a> |
                              <a href="${pageContext.request.contextPath}/book/del/${book.getBookID()}">删除</a>
                          </td>
                      </tr>
                  </c:forEach>
                  </tbody>
              </table>
          </div>
      </div>
   </div>

4. BookController 类编写 ， 方法二：添加书籍

   @RequestMapping("/toAddBook")
   public String toAddPaper() {
      return "addBook";
   }

   @RequestMapping("/addBook")
   public String addPaper(Books books) {
      System.out.println(books);
      bookService.addBook(books);
      return "redirect:/book/allBook";
   }

5. 添加书籍页面：addBook.jsp

   <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
   <%@ page contentType="text/html;charset=UTF-8" language="java" %>

   <html>
   <head>
      <title>新增书籍</title>
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <!-- 引入 Bootstrap -->
      <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
   </head>
   <body>
   <div class="container">

      <div class="row clearfix">
          <div class="col-md-12 column">
              <div class="page-header">
                  <h1>
                      <small>新增书籍</small>
                  </h1>
              </div>
          </div>
      </div>
      <form action="${pageContext.request.contextPath}/book/addBook" method="post">
         书籍名称：<input type="text" name="bookName"><br><br><br>
         书籍数量：<input type="text" name="bookCounts"><br><br><br>
         书籍详情：<input type="text" name="detail"><br><br><br>
          <input type="submit" value="添加">
      </form>

   </div>

6. BookController 类编写 ， 方法三：修改书籍

   @RequestMapping("/toUpdateBook")
   public String toUpdateBook(Model model, int id) {
      Books books = bookService.queryBookById(id);
      System.out.println(books);
      model.addAttribute("book",books );
      return "updateBook";
   }

   @RequestMapping("/updateBook")
   public String updateBook(Model model, Books book) {
      System.out.println(book);
      bookService.updateBook(book);
      Books books = bookService.queryBookById(book.getBookID());
      model.addAttribute("books", books);
      return "redirect:/book/allBook";
   }

7. 修改书籍页面 updateBook.jsp

   <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
   <%@ page contentType="text/html;charset=UTF-8" language="java" %>
   <html>
   <head>
      <title>修改信息</title>
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <!-- 引入 Bootstrap -->
      <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
   </head>
   <body>
   <div class="container">

      <div class="row clearfix">
          <div class="col-md-12 column">
              <div class="page-header">
                  <h1>
                      <small>修改信息</small>
                  </h1>
              </div>
          </div>
      </div>

      <form action="${pageContext.request.contextPath}/book/updateBook" method="post">
          <input type="hidden" name="bookID" value="${book.getBookID()}"/>
         书籍名称：<input type="text" name="bookName" value="${book.getBookName()}"/>
         书籍数量：<input type="text" name="bookCounts" value="${book.getBookCounts()}"/>
         书籍详情：<input type="text" name="detail" value="${book.getDetail() }"/>
          <input type="submit" value="提交"/>
      </form>

   </div>

8. BookController 类编写 ， 方法四：删除书籍

   @RequestMapping("/del/{bookId}")
   public String deleteBook(@PathVariable("bookId") int id) {
      bookService.deleteBookById(id);
      return "redirect:/book/allBook";
   }

9. 配置Tomcat，进行运行！

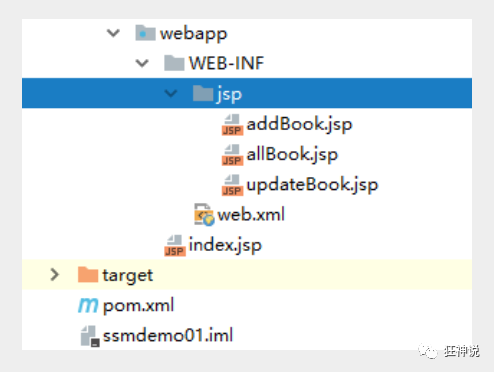

项目结构图

总结

先写dao层的业务，然后controller层去调用，接着转发到视图层。
